PTFE Expansion Bellow

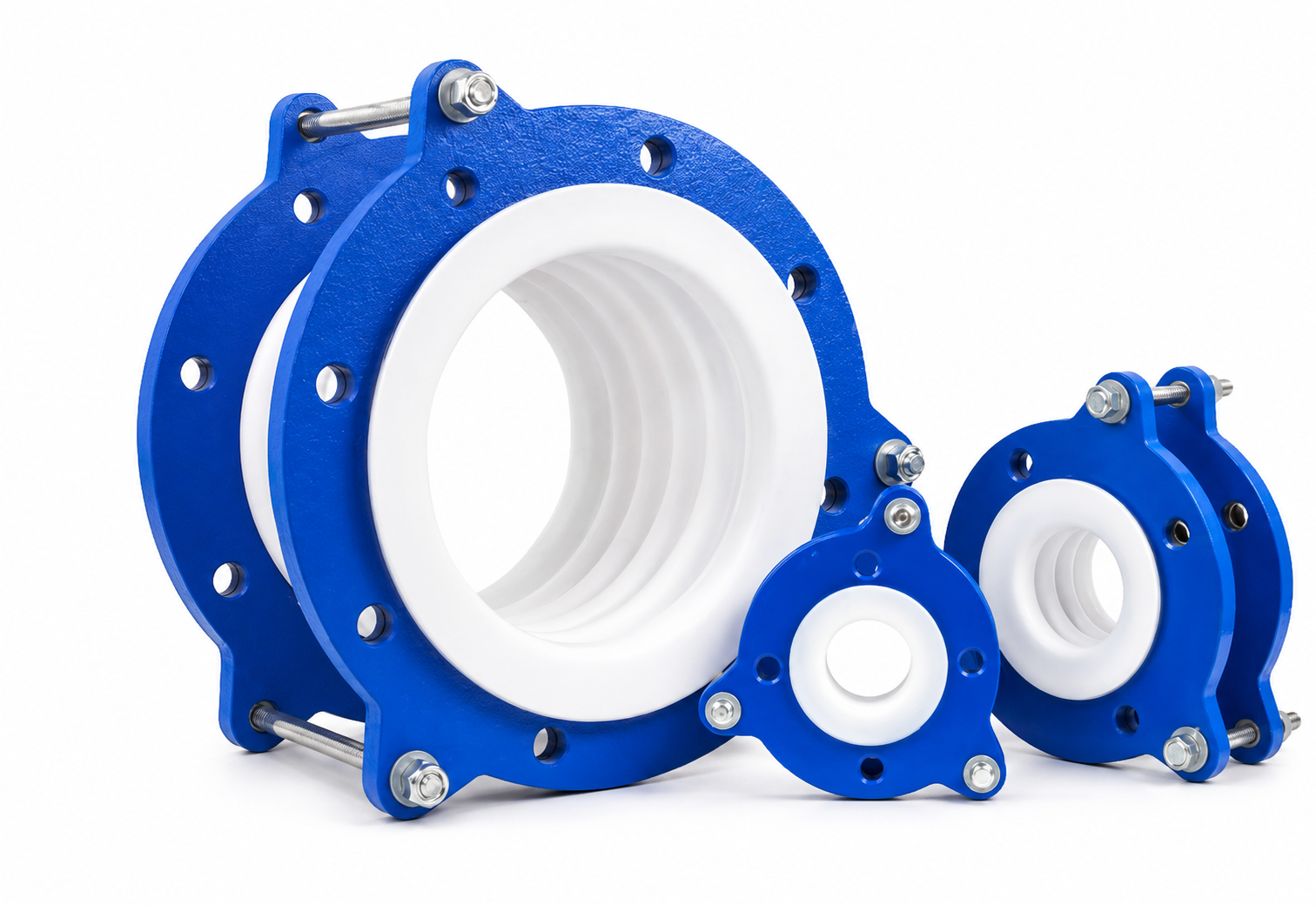

PTFE expansion bellows absorb thermal movement, vibration and alignment variation while maintaining chemical resistance in process piping.

Process ready Leak resistant Chemical duty

Inquire Now Download brochure

Product Overview

Application and service highlights

Introduction

PTFE expansion bellows are used to absorb thermal growth, vibration and minor misalignment in corrosive piping systems. They help reduce load transfer to pumps, nozzles and connected equipment while providing a chemically resistant flow path for demanding process conditions.

Key Features

Accommodates axial movement and limited lateral displacement.
Helps protect connected equipment from vibration and thermal stress.
Suitable for highly corrosive service where metallic joints may not perform well.

Specifications

Material, dimensions and testing standards

Material

Body: Fabricated carbon steel or cast steel construction based on fitting geometry.
Lining: PTFE / PFA lining for severe corrosive service.
Ends: Flanged ends to integrate with lined piping systems.

Dimensions

Available in standard pipeline sizes for process plant integration.
Face-to-face dimensions maintained for interchangeability.
Reducer, tee and elbow geometry optimized for smooth flow transition.

Testing

Visual and dimensional inspection on every fitting.
Spark testing of all lined wetted surfaces.
Hydro testing performed according to service class requirements.

Technical Drawing

Cross-sectional reference

Dimensional Specifications

Dimensional table

Size		Diameter (D)	Raised Face (R/F)	P.C.D (K)	Flange Thick. (T)	No. of Holes (N)	Hole Dia (B)	Lining Thickness (±0.5mm)	Length ± 5mm (Max L)
NB	Inch
25	1"	33.7	50	79	15	4	15	3	1500
40	1.5"	48.3	65	95	17	4	18	3	1500
50	2"	60.3	80	127	19	4	19	3	1500
80	3"	88.9	100	152	22	4	22	3	1200
100	4"	114.3	125	178	24	8	22	3	1000
