Material
- Body: As per ASTM A 106 Gr.B, SCH 40.
- Flange: ASTM A-105 / IS 2062 Gr.A.
- Lining: PTFE (ASTM D4895), PP (ASTM D4101), PVDF (ASTM D3222), and HDPE (ASTM D3350).
Product

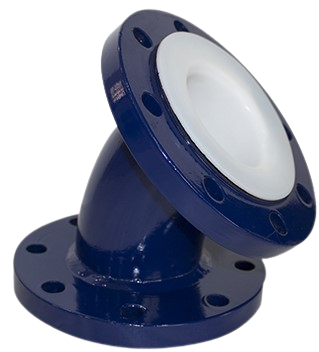

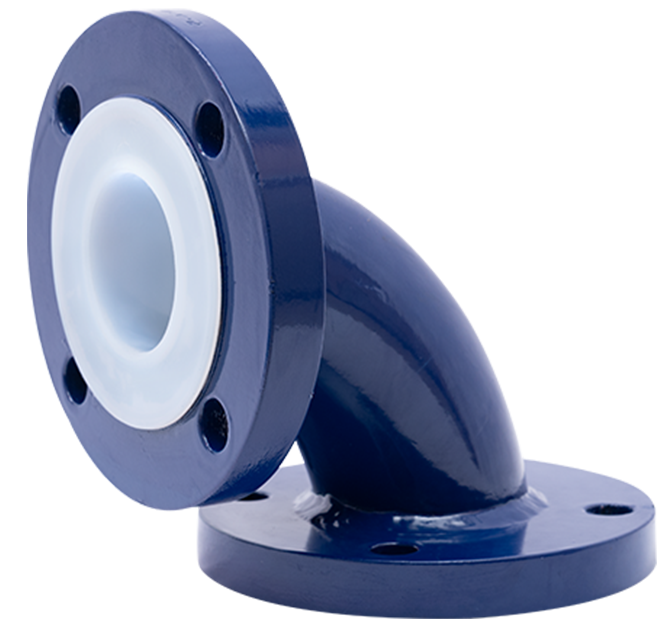

Lined Elbow 45° / 90°
Our PTFE lined elbow is available in sizes ranging from 25 mm to 300 mm in diameter, with lining thickness from 3 mm to 8 mm depending on size. Each elbow is designed with one fixed flange and one loose (rotating) flange for ease of installation. Standard flange thickness follows ANSI standards with 150#, 300#, and DIN rotating flanges in diverse materials. Vent holes for leakage detection are standard, and the design aligns with ASTM F1545 standards for plastic-lined pipes and fittings. Lining options include PTFE, PP, PVDF, HDPE, and antistatic PTFE.
Specifications
Material, dimensions and testing standards
Dimensions
- Elbow dimensions as per ANSI B36.10.
- Flange dimensions as per ANSI B16.5, Class 150.
- Lining and dimensional tolerances as per ASTM F1545.
- Lining face thickness maintained at minimum 80% of liner wall thickness.
Testing
- 100% visual and dimensional check.
- 100% spark test at 15 KVDC.
- 100% hydro test at 29 kg/cm2 for 3 minutes, as per ASTM F1545.
- 100% lining thickness check (>80% of flaring thickness).
Technical Drawing
Cross-sectional reference
Dimensional Specifications
Dimension Detail
| Size | L1 | L2 | |
|---|---|---|---|
| NB | Inch | ||
| 25 | 1” | 89 | 45 |
| 40 | 1½” | 102 | 57 |
| 50 | 2” | 114 | 64 |
| 80 | 3” | 140 | 76 |
| 100 | 4” | 165 | 102 |
| 150 | 6” | 204 | 127 |
| 200 | 8” | 228 | 140 |
| 250 | 10” | 279 | 165 |
| 300 | 12” | 305 | 190 |
Flange Dimension Detail (MM) (ANSI CLASS 150#)
| R/F | P.C.D | D | T | No. of Hole (N) | Hole Dia. (Ø) |
|---|---|---|---|---|---|
| 50.8 | 79.4 | 108.0 | 14.5 | 4 | 15.9 |
| 73.0 | 98.4 | 127.0 | 17.5 | 4 | 15.9 |
| 92.1 | 120.7 | 152.4 | 19.5 | 4 | 19 |
| 127.0 | 152.4 | 190.5 | 24.0 | 4 | 19 |
| 157.2 | 190.5 | 228.6 | 24.0 | 8 | 19 |
| 215.9 | 241.3 | 279.5 | 25.5 | 8 | 22.2 |
| 269.9 | 298.5 | 342.9 | 29.0 | 8 | 22.2 |
| 323.9 | 362.0 | 406.4 | 30.5 | 12 | 25.4 |
| 381.0 | 431.8 | 482.6 | 32.0 | 12 | 25.4 |
