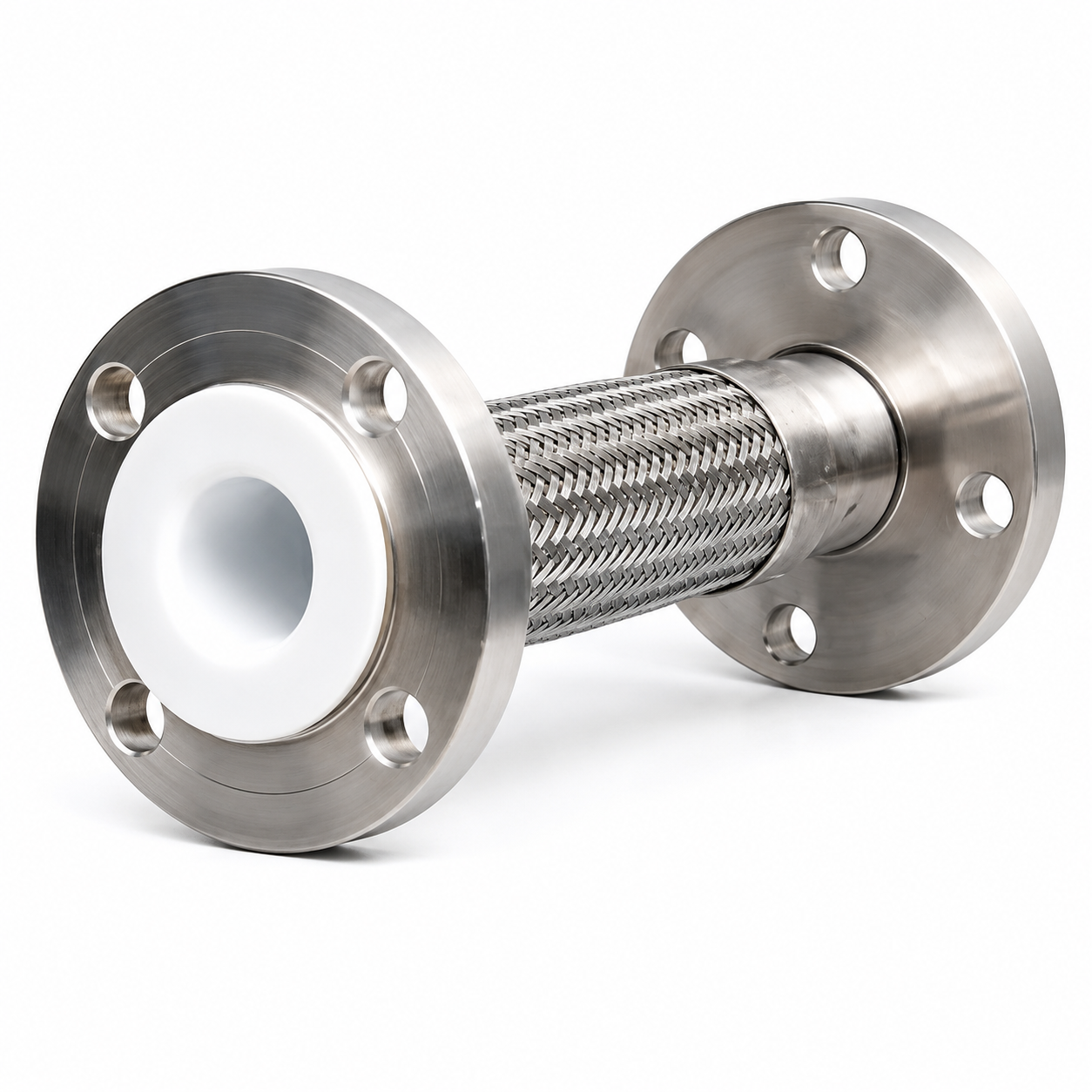

Lined Flexible Hose Pipe

Lined flexible hose pipes accommodate movement and vibration while maintaining a dependable chemical resistant flow path.

Process ready Leak resistant Chemical duty

Inquire Now Download brochure

Product Overview

Application and service highlights

Introduction

Lined flexible hose pipes are selected where movement, vibration or connection offset makes rigid piping impractical in corrosive chemical duty. They are often used between mobile equipment, pumps and fixed lines to provide flexibility while maintaining media compatibility.

Key Features

Allows movement compensation between connected equipment points.
Useful in areas with vibration, misalignment or frequent maintenance access.
Combines flexibility with a corrosion resistant internal flow surface.

Specifications

Material, dimensions and testing standards

Material

Body: Fabricated carbon steel or cast steel construction based on fitting geometry.
Lining: PTFE / PFA lining for severe corrosive service.
Ends: Flanged ends to integrate with lined piping systems.

Dimensions

Available in standard pipeline sizes for process plant integration.
Face-to-face dimensions maintained for interchangeability.
Reducer, tee and elbow geometry optimized for smooth flow transition.

Testing

Visual and dimensional inspection on every fitting.
Spark testing of all lined wetted surfaces.
Hydro testing performed according to service class requirements.

Technical Drawing

Cross-sectional reference

Dimensional Specifications

Dimensional table

Size		Diameter (D)	Raised Face (R/F)	P.C.D (K)	Flange Thick. (T)	No. of Holes (N)	Hole Dia (B)	Lining Thickness (±0.5mm)	Length ± 5mm (Max L)
NB	Inch
25	1"	33.7	50	79	15	4	15	3	1500
40	1.5"	48.3	65	95	17	4	18	3	1500
50	2"	60.3	80	127	19	4	19	3	1500
80	3"	88.9	100	152	22	4	22	3	1200
100	4"	114.3	125	178	24	8	22	3	1000
