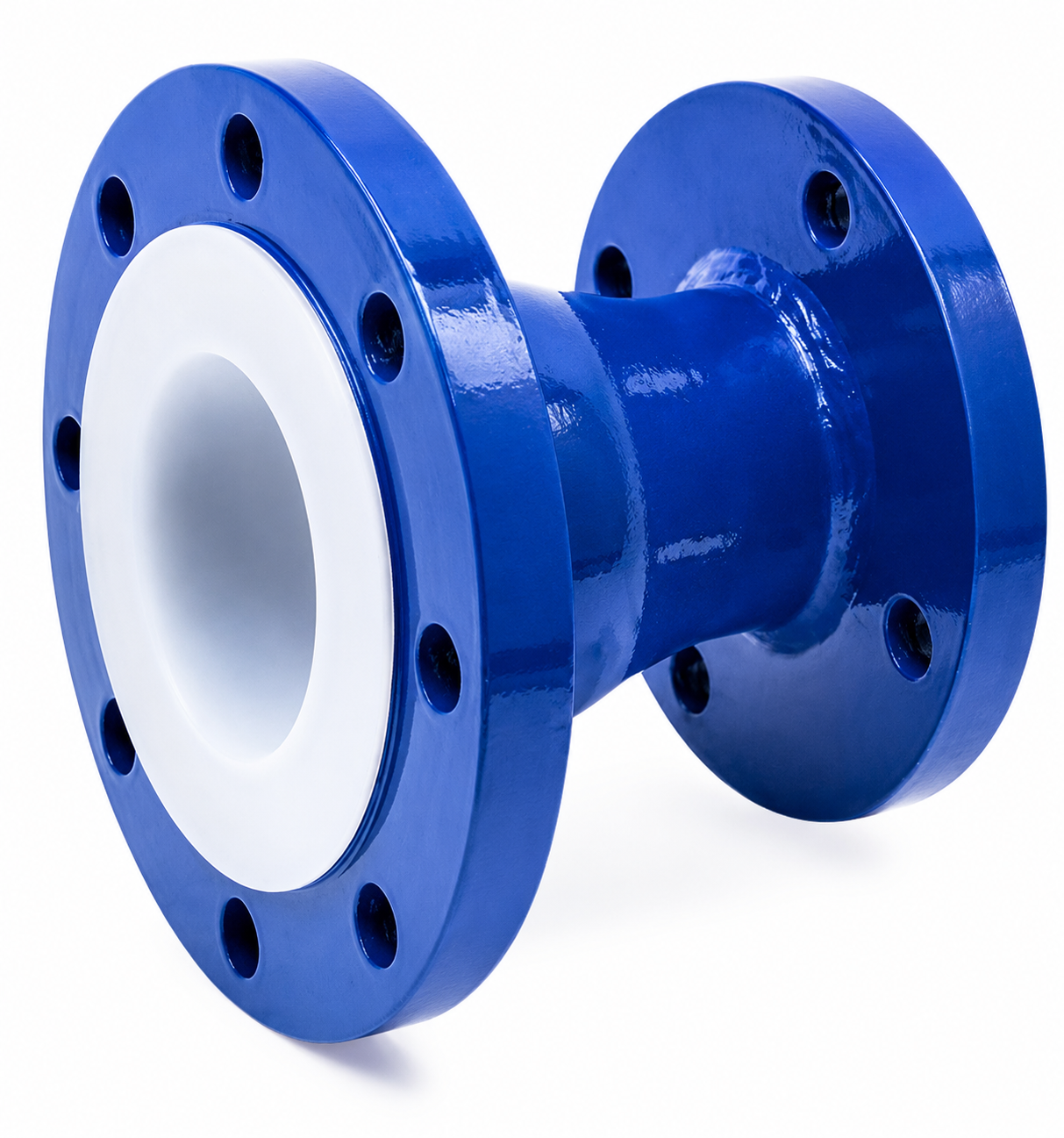

Concentric / Eccentric Reducer

Our PFA lined reducers are available in sizes ranging from 25 mm to 300 mm in diameter, with lining thickness varying from 3 mm to 8 mm depending on size. Concentric reducers provide a symmetrical transition (centerline maintained), while eccentric reducers help avoid air entrapment or liquid accumulation by maintaining a flat side—ideal for horizontal piping. Lining options include PFA, FEP, PVDF, HDPE, and antistatic PTFE. Suitable for full vacuum applications.

Process ready Leak resistant Chemical duty

Product Overview

Application and service highlights

Introduction

Our PFA lined reducers are available in sizes ranging from 25 mm to 300 mm in diameter, with lining thickness varying from 3 mm to 8 mm depending on the size. Concentric reducers are used where a symmetrical flow transition is required (maintaining pipeline centerline), while eccentric reducers are designed to avoid air entrapment or liquid accumulation by maintaining a flat side—making them ideal for horizontal piping systems. A wide range of lining options is available beyond PFA, including FEP, PVDF, HDPE, and antistatic PTFE, with reducers suitable for full vacuum applications.

Key Features

  • Smoothly connects different nominal pipe sizes.
  • Concentric or eccentric geometry can be selected to suit service conditions.
  • Maintains corrosion resistance through the full transition section.

Specifications

Material, dimensions and testing standards

Material

  • Body: D.I. casting as per ASTM A 395, Gr. 60-40-18.
  • Lining: PFA conforming ASTM D3307; PP conforming ASTM D4101; PVDF conforming ASTM D3222; HDPE conforming ASTM D3350.

Dimensions

  • Flange as per ANSI B16.5, 150#.
  • Lining and other dimensional tolerance as per ASTM F1545.
  • Lining thickness: 3 mm to 8 mm.

Testing

  • 100% visual and dimensional check.
  • 100% spark test at 15 KVDC.
  • 100% hydro test at 29 Kg/cm2, holding for 3 minutes, as per ASTM F1545.
  • 100% lining thickness check (>80% of flaring thickness).

Technical Drawing

Cross-sectional reference

Concentric / Eccentric Reducer technical drawing
Representative technical drawing. Detailed dimensions as per dimensional table.

Dimensional Specifications

Dimensional table

Dimension detail

NB1 NB2 L T
252011435
402511435
502512735
504012735
802515235
804015245
805015245
1002517845
1004017845
1005017845
1008017845
1502522954
1504022954

Dimension detail

NB1 NB2 L T
1505022954
1508022954
15010022954
2008027954
20010027954
20015027954
25010030554
25015030554
25020030554
30015035654
30020035654
35030040660

Flange dimension detail (MM) ( ANSI CLASS 150# )

NB R/F P.C.D D T No. of Hole (N) Hole Dia. (Ø)
2550.879.4108.014.5415.9
4073.098.4127.017.5415.9
5092.1120.7152.419.5419
80127.0152.4190.524.0419
100157.2190.5228.624.0819
150215.9241.3279.525.5822.2
200269.9298.5342.929.0822.2
250323.9362.0406.430.51225.4
300381.0431.8482.632.01225.4
