Lined Ball Valve

Lined ball valves deliver reliable on-off shutoff with a corrosion resistant flow path for aggressive chemical duty.

Tight shut-off Low maintenance Corrosion resistant

Inquire Now Download brochure

Product Overview

Application and service highlights

Introduction

Lined ball valves are widely used for quick quarter-turn isolation in corrosive process lines where dependable shut-off and low operating torque are required. Their design is suitable for frequent operation in chemical transfer, utility and storage systems.

Key Features

Provides fast open and close action for line isolation.
PTFE lined flow path improves compatibility with aggressive chemicals.
Suitable for on-off duty in process and transfer services.

Specifications

Material, dimensions and testing standards

Material

Valve Body: Robust metallic construction with corrosion resistant lining.
Seats & Seals: PTFE-based soft sealing elements for dependable shut-off.
Trim: Configured to suit process pressure and media compatibility.

Dimensions

Offered in standard line sizes for process and utility services.
Flanged drilling available to match common plant standards.
Compact face-to-face dimensions support retrofit installations.

Testing

Seat leak and shell testing before dispatch.
Lining continuity inspected with spark testing.
Operational cycling checked for smooth performance.

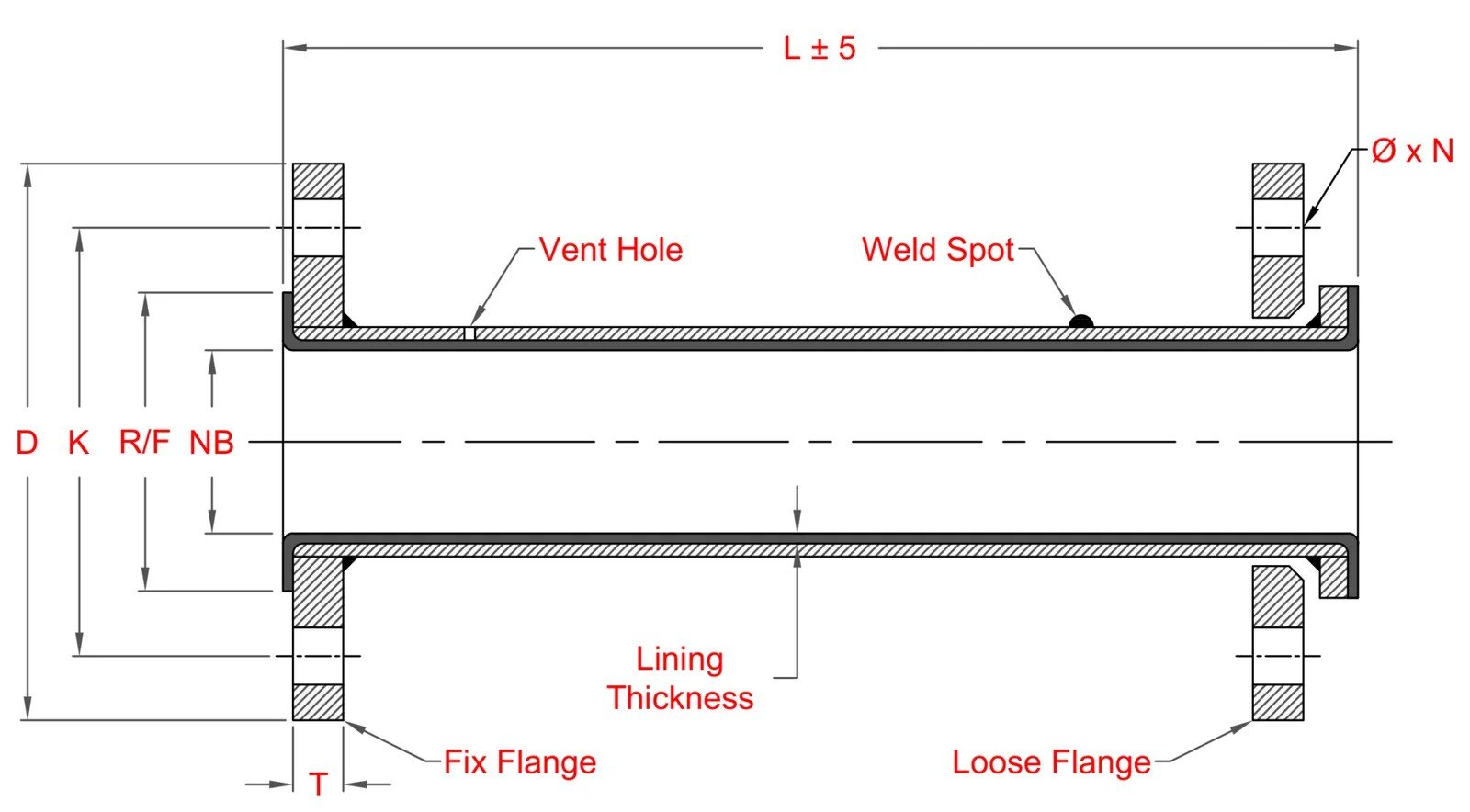

Technical Drawing

Cross-sectional reference

Dimensional Specifications

Dimensional table

Size		Diameter (D)	Raised Face (R/F)	P.C.D (K)	Flange Thick. (T)	No. of Holes (N)	Hole Dia (B)	Lining Thickness (±0.5mm)	Length ± 5mm (Max L)
NB	Inch
25	1"	33.7	50	79	15	4	15	3	600
40	1.5"	48.3	65	95	17	4	18	3	600
50	2"	60.3	80	127	19	4	19	3	500
80	3"	88.9	100	152	22	4	22	3	400
100	4"	114.3	125	178	24	8	22	3	300
